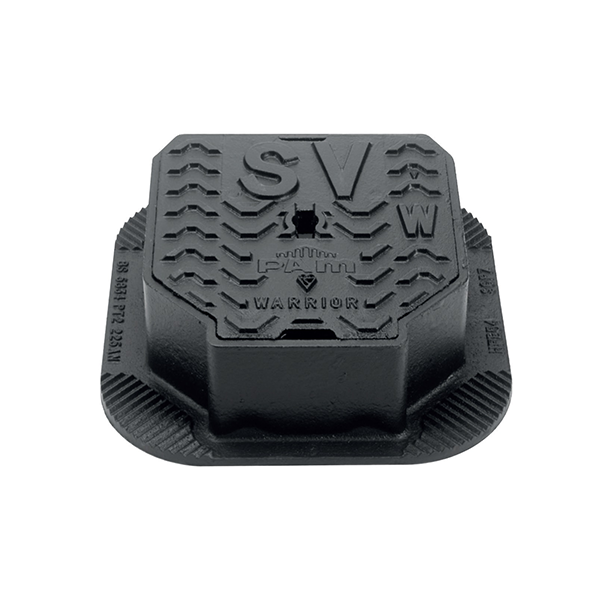

Surface Box – Carriageway
Made from strong and highly durable ductile iron, our Surface Boxes are designed for use in the carriageway and are suitable for telecoms and utility networks where access to below ground networks is required.
Surface Boxes provide a secure environment for fast and easy access to below grounds networks.
Highly durable, the units are BS5834 GRADE A and are non rock and silent in operation.
The TELCO Surface Boxes are designed for use in Fibre Networks and feature through slots and apertures variants with a 150mm depth.
Surface boxes can also be used as an access cover with our Toby Joint Box system.
Features & Benefits
- Compliant with BS 5834-2 Grade A
- Manufactured from strong and highly durable ductile iron
- Fast & easy installation
- Three-point suspension on covers for non-rock stability
- Lid badging available
Sizes
| Description | Product Code | Clear Opening Size (mm) | Overall Frame Size (mm) | Frame Depth (mm) |
| Standard Surface Box | UY1435 | 150 x 150 | 225 x 225 | 100 |
| TELCO Surface Box with through slot |
UY1436 | 150 x 150 | 225 x 225 | 150 |
| TELCO Surface Box with through slot and hole |
UY1437 | 150 x 150 | 225 x 225 | 150 |
Options
- Lid Operator Branding
Certifications
- Compliant with BS 5834-2 Grade A
Certifications
- Compliant with BS 5834-2 Grade A
Installation:
- Direct Bury (DB)
- Underground
Applications:
- Backbone
- Campus
- Drop
- FTTh
