Recessed Covers
Recessed covers are suited to external applications and have been designed to be filled with a variety of hard landscaping products typically a block pavior or slab infill (e.g cobble setts, concrete, tarmac or natural stone products).

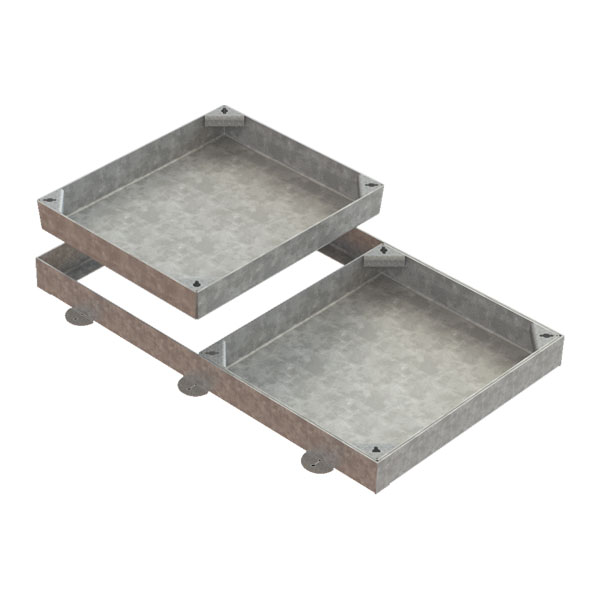

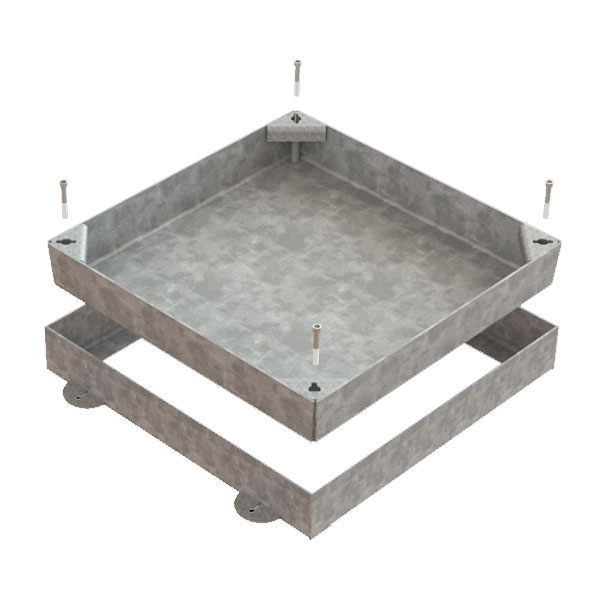

Standard recessed covers consist of a plain seated frame with a pressed inner tray designed to be infilled.The covers are underbraced where necessary to meet the stated load rating.
All products are manufactured under an ISO 9001 Quality system and designed in with FACTA load specification .They are fabricated from high grade mild steel and hot dip galvanised to BS EN ISO1461.
Traditionally located in pedestrianised areas, public open spaces, retail parks and any other area subjected to slow moving vehicles.
About FACTA Specification & Loads
Features & Benefits
- Solid steel based plate
- Hot dipped galvanised to BS EN ISO 1461 as standard
- Optional single or double Neoprene seal
- Non-standard sizes available
- Stainless steel edging available
- Various locking options
Sizes
Recessed covers are available in a range of standard sizes as well as custom sizes.
Please contact our sales team to discuss your requirements.
| Clear Openings (mm) | Ref | Loading Class |
| Telecoms | B125 | |
| 725×225 | FW2 |  |
| 600×600 | FW5 | |
| 915×445 | FW4 | |
| 1310×610 | FW6 | |
| 2320×740 | FW10 | |
How to measure Access Covers?
How to measure access covers?
Access cover dimensions are always referred to by their ‘clear opening size’ and sometimes also by their frame depth.
The clear opening is the inside frame dimensions. The clear opening size of the access cover frame must always be equal to or greater than the size of the chamber it is covering to ensure the frame is adequately supported.
Options
- Security Locking
- Custom badging available, subject to MOQ
- Single or Double Neoprene Seal
- Removable or Bolted Beams
- Threaded Lifting Points
- Socket cap/security screw/turnbuckle locking
- Security Screw Locking
- Hinged Spring Assisted
- Powder Coated
Certification
- FACTA A, AA, AAA,B,C,D,E
- BS EN ISO 9001
Certification
- FACTA A, AA, AAA,B,C,D,E
- BS EN ISO 9001
