DI Connectors
Pictures for illustration only, design and colour may differ

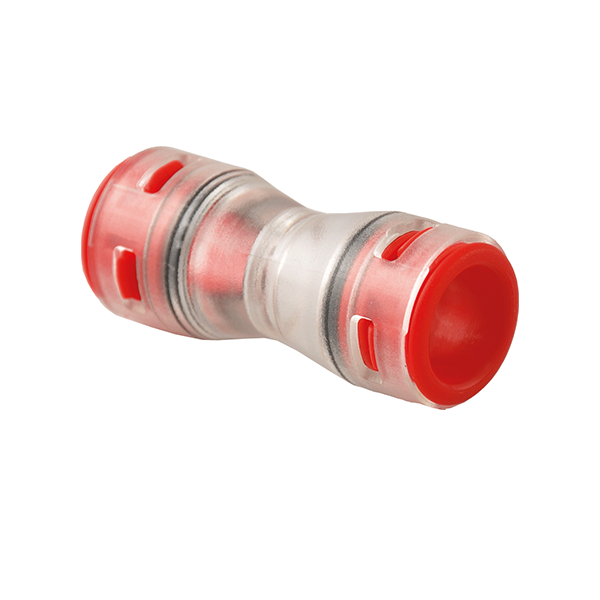

These push-fit connectors is used to connect microducts to provide a dedicated link for either pulling or blowing fibre optic cables. It is suitable for direct install applications.
Features a fully transparent body for ease of visual inspection to ensure the tube is inserted correctly.
The internal profile design allows an unobstructed passage for the cable and is not affected by the internal diameter of the duct.
The connector comes supplied with a tamper-proof locking clip which prevents accidental disconnection. Removal is easily achieved by pressing the collet inwards.
Features & Benefits
- Tough and robust
- Suitable for Direct Install
- Push-fit connection
- Easy connection & disconnection
- Transparent body
- Locking clips
- IP68 protection
- 15 bar blowing pressure
- 20 years lifetime
- EN50411-2-8 compliant
Sizes
Tube OD (mm) | Tube ID (mm) |
3 | 2.1 |
4 | 3 |
5 | 2.1 |
5 | 3.5 |
6 | 4 |
7 | 3.8 |
7 | 5.5 |
8 | 3.5 |
8 | 4 |
8 | 4.5 |
8 | 6 |
10 | 6 |
10 | 8 |
12 | 8 |
12 | 10 |
14 | 10 |
14 | 12 |
16 | 12.8 |
Certification
- EN 50411-2-8 Microduct connector specification
- EN60529 IP68
- EN 61386-22 Glow test at 750º
- EN 61386-24 Conduits Systems underground
