LSZH Assemblies – UL Riser Rated
Indoor
This Low Fire Hazard MicroGlide™ range is designed for Riser use in buildings and is approved by Underwriter Laboratories to RISER UL 1666 and CUL 1666. These standards refer to fire tests for determining values of flame propagation height of cables that are for installation vertically in shafts or in vertical runs that penetrate one or more floors.
Radius MicroGlide™ assemblies consist of a number of LSZH – Low Smoke Zero Halogen – low friction microducts surrounded with an LSZH sheath. They offer low smoke emission, low toxicity and flame retardant properties.
All Radius microducts feature our low friction and low static permanent inner layer which delivers class-leading cable blowing performance.
What is Low Friction coating?
A solid layer of lubricant is evenly distributed on the inner wall by coextrusion as part of the manufacturing process, providing a permanent low friction and low static surface which lasts for the life of the duct.
Low friction values allow quicker installation and optimal blowing distances. Radius microduct offers superior blowing performance in this market.
Low Friction Matters
The blowing distance achieved is directly related to a number of factors including : cable to duct area fill ratio (we recommend 50 to 60% ideally but no more than 70%); weight of cable; pressure used, route difficulty (bends and gradients) and last but not least the Coefficient of Friction (CoF) from the microduct inner lining.
The contribution of the microduct inner lining to achieving speed of installation and longer blowing distances should not be underestimated. A quality lining should have the right combination of low CoF and low static for optimum results and for that reason, not all linings are created equal.
Class Leading
Friction Properties
At Radius, we have spent years of careful formulation and testing to achieve our class leading low friction and low static inner coatings. Our low friction compounds are home crafted, no ready-made mixes there!
And the results speak for themselves in the field where for the last 30 years we have helped our customers achieve proven consistent long install lengths thanks to our high-performance low friction coating.
Features & Benefits
- For use inside buildings and verticals risers
- Ideal for use in MDUs
- Approved to RISER UL 1666 and CUL 1666 by Underwriter Laboratories
- Low Smoke Zero Halogen (LSZH) sheath and primary tubes
- Low flammability, low smoke and zero halogen emissions
- Low Friction for optimum blowing performance
- Smooth inner wall
- Ripcord for sheath removal
- Configurations available from 1 to 24way
Why Low Friction Matters?
Sizes
| Primary tube | Configuration | Assemblies OD (mm) |
| 5/3.5mm | 1way | 6.9 |
| 5/3.5mm | 2way | 11.9×6.9 |
| 5/3.5mm | 4way | 14.0×11.9 |
| 5/3.5mm | 7way | 16.9×15.6 |
| 5/3.5mm | 12way | 22.2×19.9 |
| 5/3.5mm | 19way | 26.9×24.2 |
| 5/3.5mm | 24way | 31.9×31.6 |

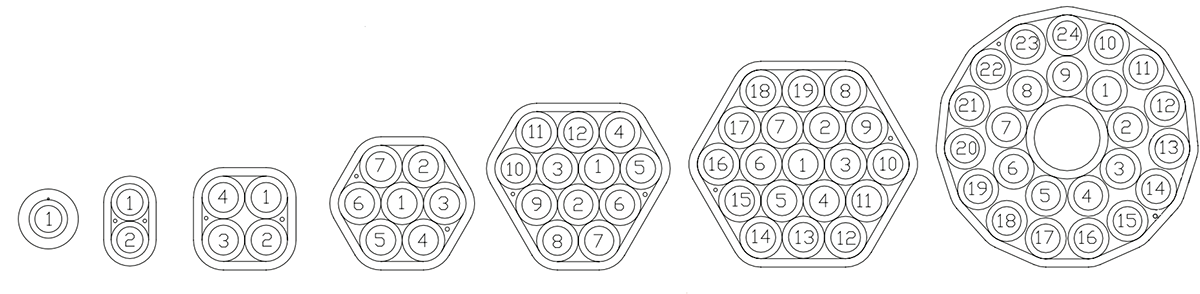

Typical Configurations
Options
Microducts:
- Inner Wall: Smooth
- Colour: Solid white
- Numbering
- Customer Specific Print
- Pre-Cabling
Assembly:
- Numbering
- Customer Specific Print
Microducts and outer sheath are available in white:
Standard
- Approved to RISER UL 1666 and CUL 1666 by Underwriter Laboratories
- Approval No. E308689, E487209, MH25274
Installation:
- Indoor
- MDU
- SDU
Applications:
- Campus
- FTTh
- MDU
- SDU
