Concrete Infill Access Covers

ACCESS CHAMBER SYSTEMS

Concrete Infill Covers

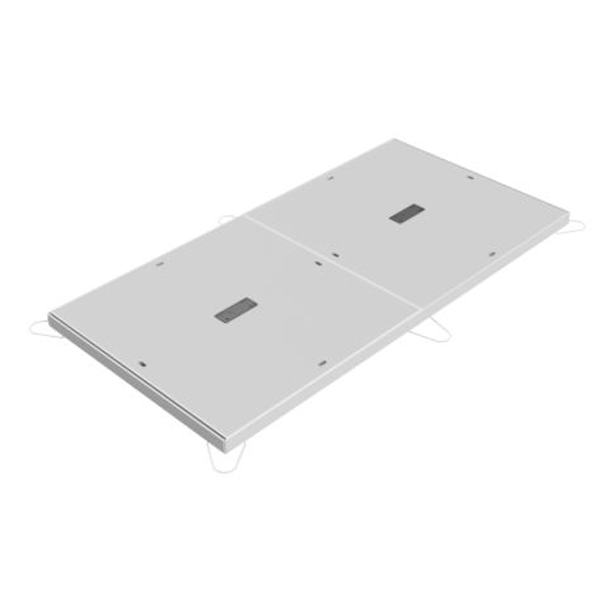

Radius concrete Infill covers are available in a range of sizes, with locking and badging options. Concrete covers are a durable solution for B125 applications and have traditionally been specified in Telecoms applications for many years.

The frames, covers and cross pieces are manufactured from rolled steel to BS 1449 and galvanised to BS EN ISO 1461. Individual covers are filled with concrete.

Radius Concrete Infill covers are BSI Kitemarked and are approved by Openreach.

More about EN124 Loading Classes

Features & Benefits

BSI Kitemark – Gully Tops and Manhole Tops
Safety & Durability – Concrete covers offer long service life span with durable anti-slip properties.
No Scrap Value – Concrete covers have no inherent scrap value rendering them unattractive to thieves.
Load Rating – Concrete Infill covers are suitable for EN 124 B125 applications: suitable for footways, pedestrian areas, car parks and parking decks.

Sizes

Concrete Infill covers are available in a range of standard sizes as well as custom sizes. Supplied with blank badging as standard, custom badging available.

Please contact our sales team to discuss your requirements.

contact sales team

Clear Openings (mm)	Ref	Loading Class	BT Openreach approved	Virgin Media Approved
TELECOMS		B125
550×315	FW1
740×470	FW2
725×255	EN2
750×600	FW3
610×610	EN5
915×445	FW4/EN4
1310×610	FW6/EN6
2320×750	FW10/EN10

All above are BSI Kitemark approved

Clear Openings (mm)	Ref	Loading Class	BSI Kitemark
UTILITIES		B125
450×300	EN55
300×300	EN7
600×450	EN1
610×610	EN5



How to measure Access Covers?

How to measure access covers?

Access cover dimensions are always referred to by their ‘clear opening size’ and sometimes also by their frame depth.

The clear opening is the inside frame dimensions. The clear opening size of the access cover frame must always be equal to or greater than the size of the chamber it is covering to ensure the frame is adequately supported.
