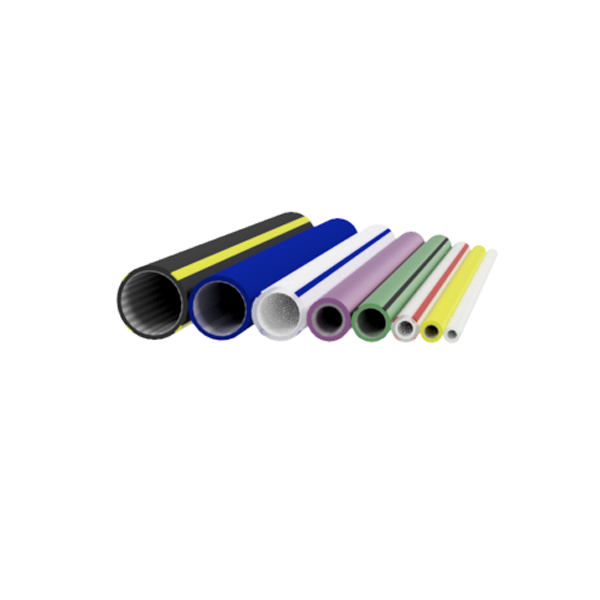

DI Single Microduct
Providing a pathway for fibre optic cable, our Direct Install (DI) microducts MiniGlide™ & MicroGlide™ are designed for installation into an existing duct.
Made from high quality prime PE materials, all Radius CTS microducts feature our proven Low Friction permanent inner coating to deliver class leading cable blowing performance.
Available with ribbed or smooth inner bore according to your preference.
Supplied as single loose tubes or used in sheathed assemblies of various configurations.
What is Low Friction coating?
A solid layer of lubricant is evenly distributed on the inner wall by coextrusion as part of the manufacturing process, providing a permanent low friction and low static surface which lasts for the life of the duct.
Low friction values allow quicker installation and optimal blowing distances. Radius CTS microduct offers superior blowing performance in this market.
Low Friction Matters
Fast cable installation into ducting is key for cost effective, low disruption network build. Cable blowing is the method of choice for longer routes whereby cables are propulsed into the ducting using compressed air.
The blowing distance achieved is directly related to a number of factors including: cable to duct area fill ratio (we recommend 50 to 60% ideally but no more than 70%); weight of cable; pressure used, route difficulty (bends and gradients) and last but not least the Coefficient of Friction (CoF) from the microduct inner lining.
The contribution of the microduct inner lining to achieving speed of installation and longer blowing distances should not be underestimated. A quality lining should have the right combination of low CoF and low static for optimum results and for that reason, not all linings are created equal.
Class Leading
Friction Properties
At Radius CTS, we have spent years of careful formulation and testing to achieve our class leading low friction and low static inner coatings. Our low friction compounds are home crafted, no ready-made mixes there!
And the results speak for themselves in the field where for the last 30 years we have helped our customers achieve proven consistent long install lengths thanks to our high-performance low friction coating.
Features & Benefits
- Suitable for Direct Installation (DI) into another duct
- Permanent Low Friction inner coating as standard
- Class Leading Cable Blowing Performance
- Prime Grade Polyethylene (PE) only
- Excellent Stress Crack and Crush Resistance
- Up to 12 bar blowing pressure
- Supplied as single loose tubes or used in sheathed assemblies of various configurations
- Supplied on drums typically between 500m to 5000m length
Why Low Friction Matters?
Sizes
| MicroGlide™ & MiniGlide™ DI | ||
| 3/2.1mm | 7/5.5mm | 12/10mm |
| 4/2.7mm | 8/6mm | 14/11mm |
| 5/3.5mm | 10/8mm | 14/12mm |
| 6/4mm | 12/9mm | 16/13mm |
Options
- Inner Wall: Smooth or Ribbed
- Colour: Solid / Translucent / Stripes
- Numbering
- Customer Specific Print
- UV Stabilisation
- Pre-Roping
- Pre-Cabling
Certification
- Made to ISO 60794-1-21 : 2015 & ISO 60794-5-10 : 2014
- Can be manufactured to SKZ HR 3.54 : 2019-07
Certification
- Made to ISO 60794-1-21 : 2015 & ISO 60794-5-10 : 2014
- Can be manufactured to SKZ HR 3.54 : 2019-07
Installation:
- Direct Install (DI)
- Underground
Applications:
- Backbone
- Campus
- Drop
- FTTh
- Last Mile
- PIA
