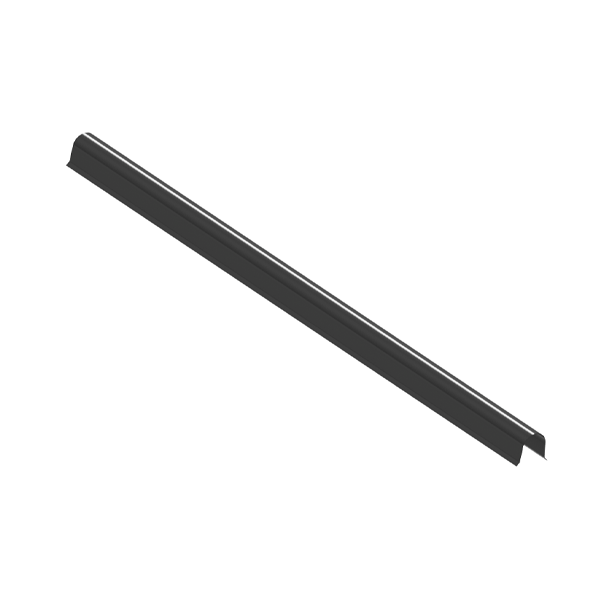

Cable Guards
A plastic capping profile used for the protection of cable/duct. It can be
mounted onto poles, fences and walls for the routing of cable/duct.
• Manufactured from 100% recycled PVC
• Good impact resistance
• Easy installation
• Pre-drilled fixing nail/screw holes
• Rigid 100% recycled PVC – Medium Impact
| Dimensions | ||||||
| Max Cable OD | Colour | Length | Profile Wall Thickness | Fixing Hole Diameter | Fixing Hole Pitch | Pack Qty |
| 20mm | Black | 3m | 2.1mm | 4mm | 500mm | 10 |
| 25mm | Black | 3m | 2.1mm | 4mm | 500mm | 10 |
| 38mm | Black | 3m | 2.1mm | 4mm | 500mm | 10 |
| 55mm | Black | 3m | 2.2mm | 4mm | 500mm | 5 |
| 64mm | Black | 3m | 2.2mm | 4mm | 500mm | 5 |
| 75mm | Black | 3m | 3.0mm | 4mm | 500mm | 5 |
| 80mm | Black | 3m | 3.0mm | 4mm | 500mm | 5 |
| 100mm | Black | 3m | 3.5mm | 4mm | 500mm | 5 |
